SKU: EL320D-15-SCN

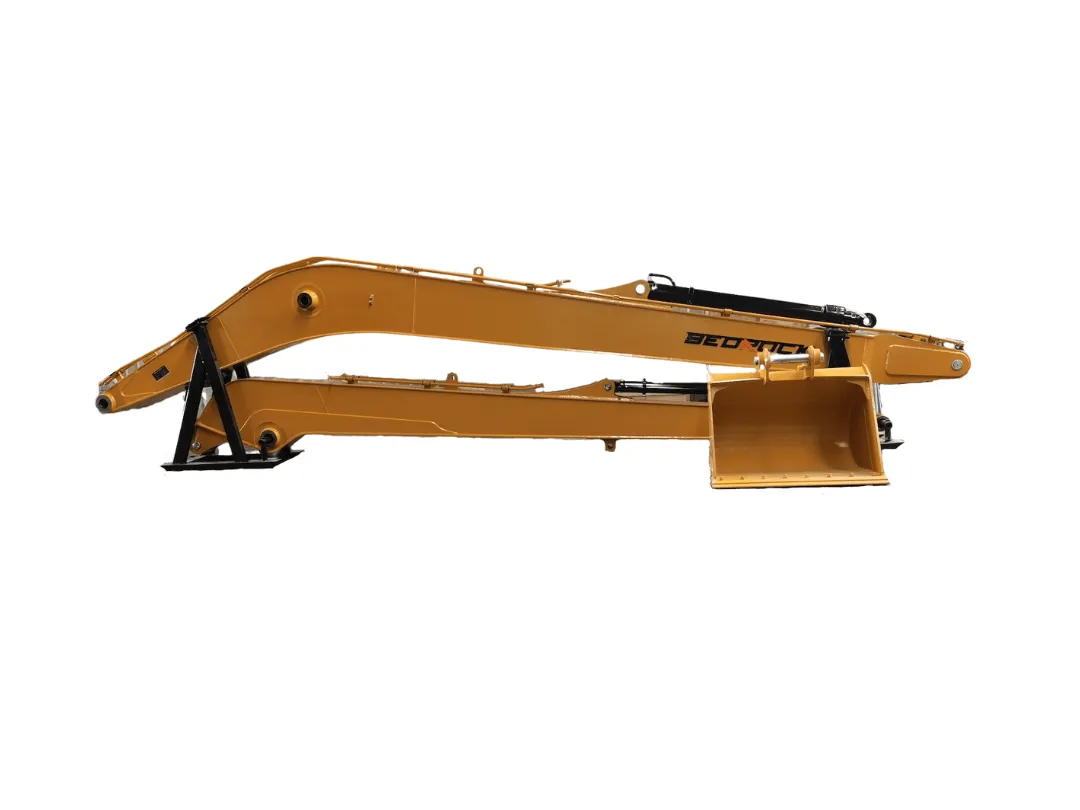

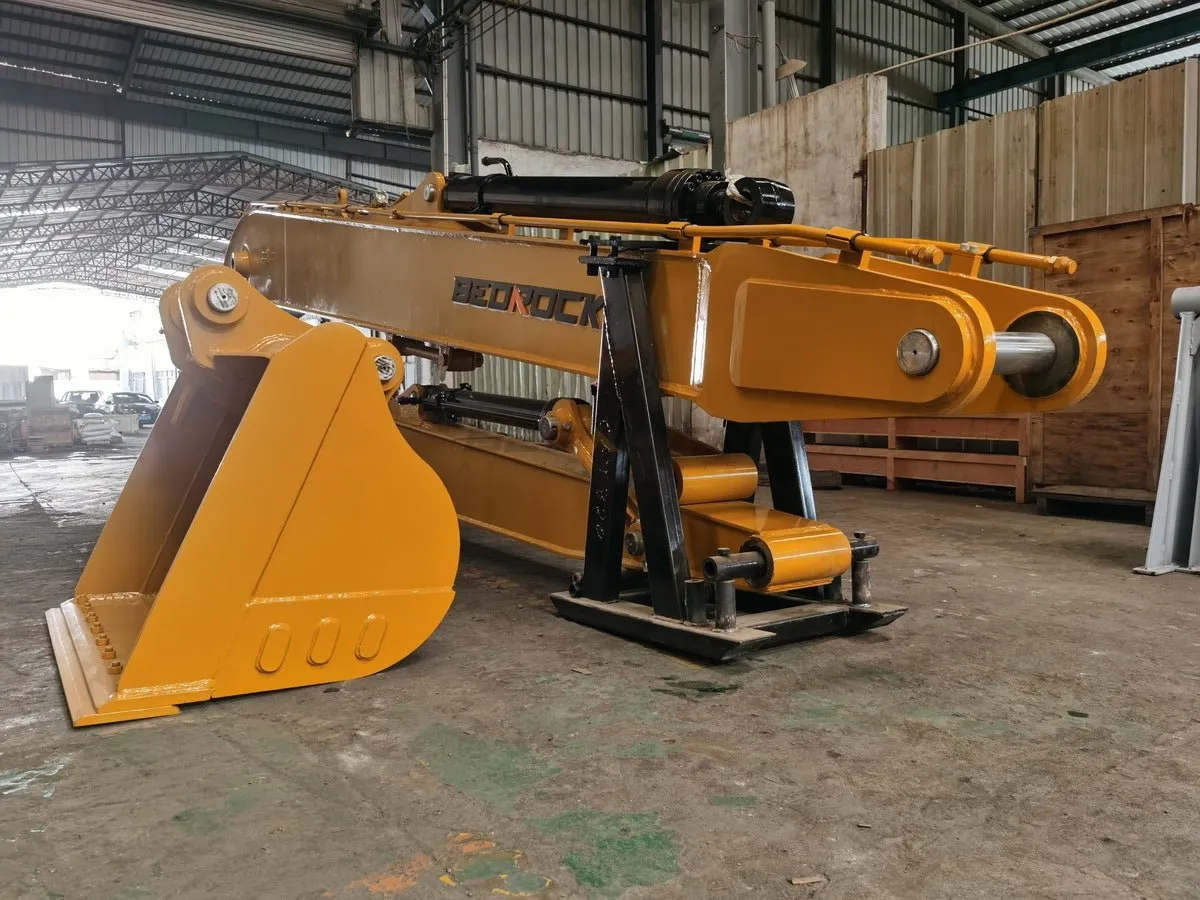

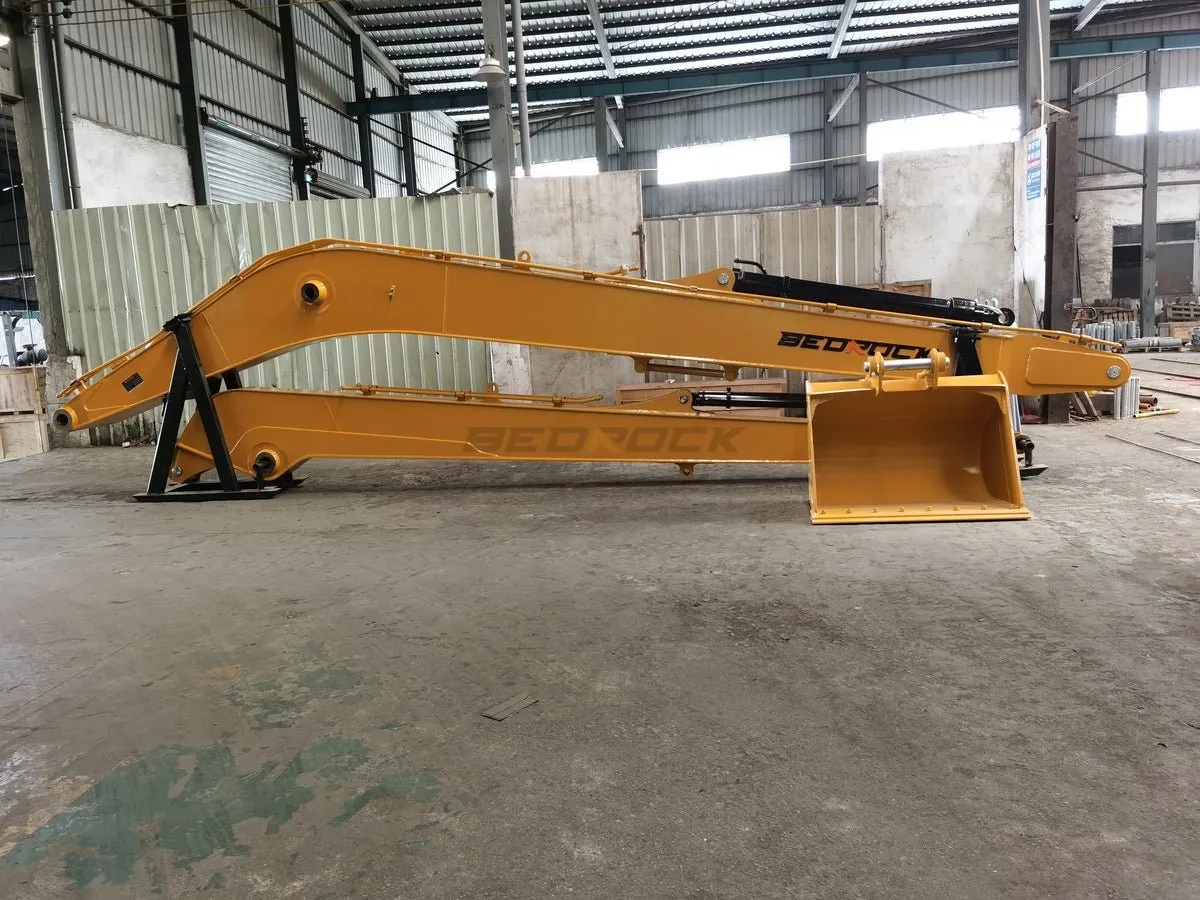

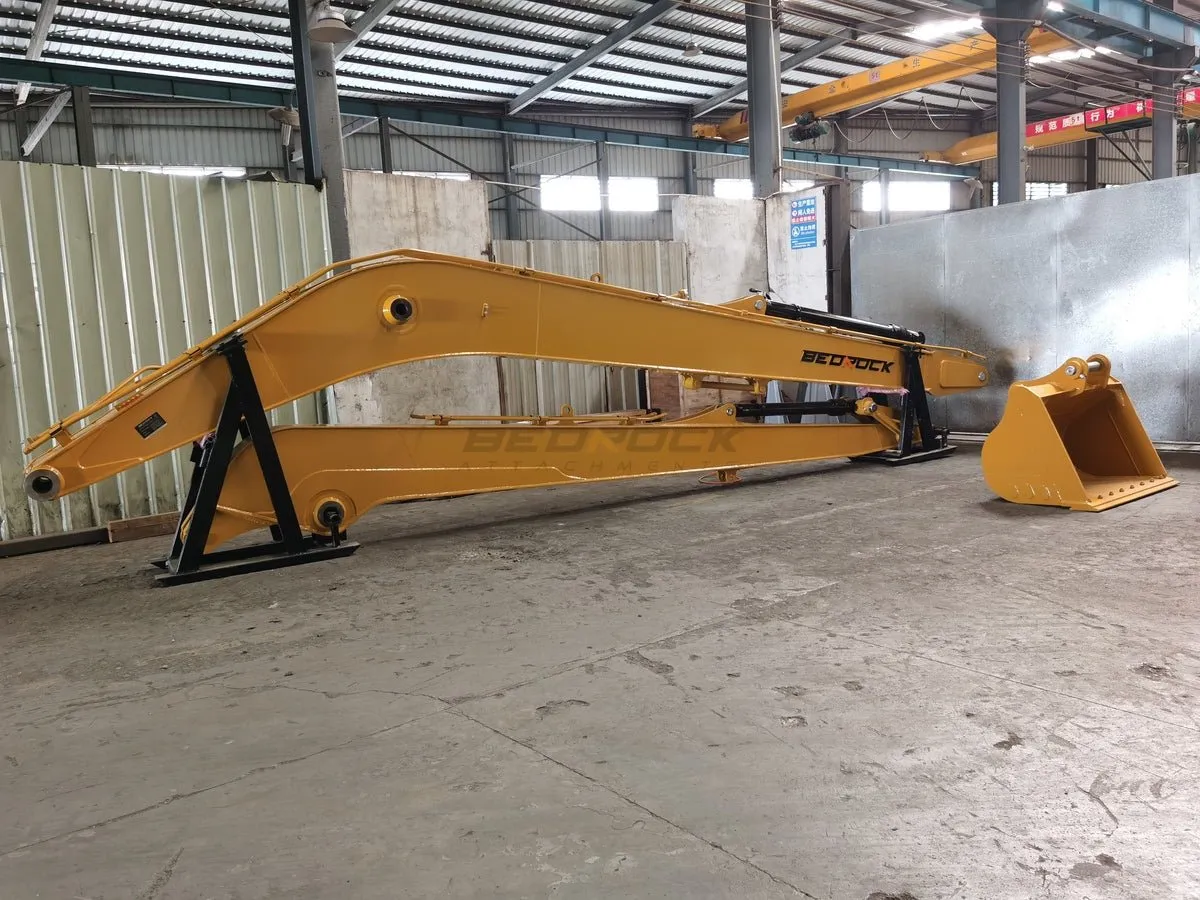

CAT 320 / 320GC / 320GX / 320D / 320DL / 320D2 / 320D2L / 320D2GC / 323 / 323GC / 323GX / 323DL / 323D2L, 15 Meter Long Reach, 0.6m3 Bucket,
Including Pipes, Pins, Bucket Cylinder, Stick Cylinder 315 Linkage (2 x 70mm Pins)

8.2m Boom, 6.8m Stick, 0.6m3 Bucket, Stick Cylinder, Bucket Cylinder, 8 Pins

Supporting structure included for easier packing and transportation
CE mark

Using computerized analysis for the stress distribution of the long reach and optimizes the design structure
Using larging milling equipment to improve welding
Using cold-rolled precision steel for the pipes and finishing by phosphoric acid washing, in order to make the pipes smoother, reducing hydraulic oil flow resistance and reducing oil circuit pollution
Using robotic top quality welding
Using ultrasonic non-destructive testing to ensure the welding quality
Using top quality boring machine to ensure the parallelism of the pin holes
All products are sandblasted, the appearance of the product is smooth and clean
Using top quality cylinders
